BMS - SmartStruxure, Struxureware - Kontrolör, Analog Çıkış, AO-8 8 Analog Çıkış V/mA

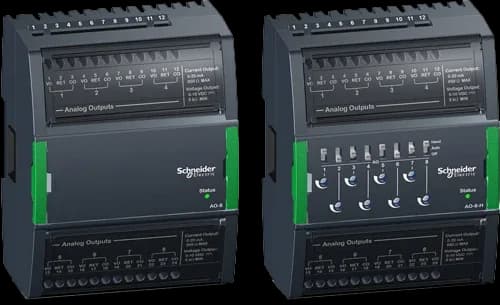

Introduction SpaceLogic™ AO-8 and AO-8-H Central IO modules are analog output, 8-channel I/O modules. The analog outputs are capable of supporting analog voltage or current point types. Therefore, analog outputs support a wide range of devices, such as actuators. Function Modular and scalable system The modules are part of a modular system that delivers power and communications on a common bus. Connecting modules is a one-step process: just slide the modules together using the built-in connectors. Patented two-piece design Each module can be separated from its terminal base to allow the site to be wired prior to the installation of the electronics. The patented locking mechanism serves as handles for removing the module from its base. All critical components have a protective cover that permits convection cooling to occur. Figure: Two-piece design Hot-connect and Hot-swap Because critical applications require 24-hour operation, Schneider Electric designed the Central IO modules for hot-connection of terminal bases and hot-swapping of the modules to their bases. This design ensures continuous power and communication during service operations. Auto-addressing The auto-addressing feature helps eliminating the need for setting DIP switches or pressing commission buttons. Each module automatically knows its order in the chain and assigns itself accordingly – significantly reducing engineering and maintenance time. Simple DIN-rail installation Fasteners easily snap into a locked position for panel installation. The fastener has a quick-release feature for easy DIN-rail removal. Efficient terminal management The Central IO module terminals are clearly labeled and protected by transparent covers. The input and output terminals are at the top and bottom of each module and are accessible for maintenance without removing the module. The EcoStruxure Building Operation WorkStation software can generate custom as-built labels for each module. Pre-perforated letter and A4 size label sheets are available as an accessory. Accommodates multiple row panel installations The SpaceLogic devices use built-in connectors for single row connectivity, side by side. If a panel size requires multiple rows, extension cords are available. LED status indicators The Central IO module has a status indicator that denotes the health and status of the module. Hand/Off/Auto switches The front panel of the AO-8-H includes Hand/Off/Auto (HOA) switches to provide override control of the analog outputs. Each output also has a potentiometer to modulate the output signal when the switch is in the Hand position. The position of the HOA switch is readable through user interfaces, such as the EcoStruxure Building Operation WorkStation software, enabling more precise monitoring and control. Protection Protection components on the analog outputs protect against high-voltage short-duration transient events. The analog outputs have current limits to protect against permanent short-circuit to ground. Specifications Output channels 8 DC input supply power 4.9 W DC input supply voltage 24 VDC Environment Ambient temperature, operating 0 to 50 °C (32 to 122 °F) Ambient temperature, storage -20 to +70 °C (-4 to +158 °F) Maximum humidity 95 % RH non-condensing Material Plastic flame rating UL94-5VB Enclosure PC/ABS Ingress protection rating IP 20 Mechanical Dimensions including terminal base 90 W x 114 H x 64 D mm (3.6 W x 4.5 H x 2.5 D in.) Weight including terminal base 0.282 kg (0.62 lb) Weight excluding terminal base 0.159 kg (0.35 lb) Terminal base TB-IO-W1 Agency compliances Emission RCM; BS/EN 61000-6-3; FCC Part 15, Sub-part B, Class B Immunity BS/EN 61000-6-2 Safety standards BS/EN 61010-1; UL 916 C-UL US Listed Product BS/EN 61326-1 Smoke control product safety UL 864 Part numbers AO-8, Central IO module 8 analog voltage/current outputs SXWAO8XXX10001 AO-8-H, Central IO module with HOA switches 8 analog voltage/current outputs with Hand/Off/Auto override switches SXWAO8HXX10001 TB-IO-W1, terminal base for Central IO module (Required for each Central IO module) SXWTBIOW110001 Accessory part numbers DIN-RAIL-CLIP, DIN-rail end clip package of 25 pieces SXWDINEND10001 PRINTOUT-A4-W1, printout sheets for terminal labels A4 sheet size, 100 sheets, 18 labels per sheet SXWTERLBL10011 PRINTOUT-LTR-W1, printout sheets for terminal labels Letter sheet size, 100 sheets, 16 labels per sheet SXWTERLBL10012 S-CABLE-L, S-cable extension cord for the I/O bus, L shaped connectors 1.5 m SXWSCABLE10002 S-CABLE-L, S-cable extension cord for the I/O bus, L shaped connectors 0.75 m SXWSCABLE10003 Analog outputs, AO Voltage Range 0 to 10 VDC Accuracy +/-100 mV Resolution 42 mV Minimum load resistance 5 kohm Load range -1 to +2 mA Reliability check Yes Terminals Voltage Output (VO), Return (RET) Current Range 0 to 20 mA Accuracy +/-0.2 mA Resolution 0.1 mA Load range 0 to 650 ohm Reliability check Yes Terminals Current Output (CO), Return (RET) For protection from excess current that could be produced by field wiring, follow these instructions: - Connect one RET terminal on each of the Central IO modules to a common chassis/power ground rail in the control panel using a size 16 AWG (1.3 mm 2 ), or larger wire. - Individual 24 VDC power sources to the field must be current limited to maximum of 4 A for UL compliant installations, and no more than 6 A in other areas. - For more information on wiring, see the SpaceLogic and EasyLogic - Hardware Installation System Guide.
